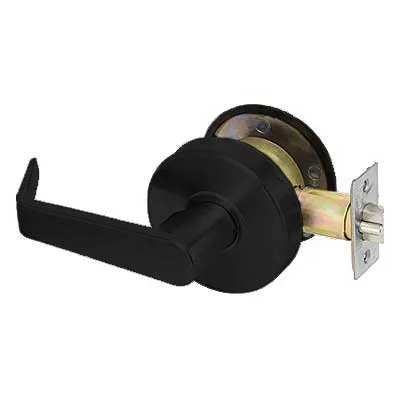

Accentra (Formerly Yale) AU4628LN-BSP Passage Communicating Door Lock - Grade 2, AU Lever, 2 3/4" Backset, BSP Black Suede Powder Coat

 The AU4628LN BSP is a Grade 2 Cylindrical lock with a 2 1/8" bore, and a 2 3/4" backset. The AU stands for its Augusta Lever, The Communicating Passage is a non-keyed lock. The Finish is a US26D/626 Brushed Chrome Finish



Product Specifications

Vendor	Assa Abloy
Manufacturer	Accentra
SKU	AU4628LN BSP
Grade	Grade 2
Installation	Commercial
Origin	United States
Unit of Measure	Each
Base Material	Brass, Bronze
UL Listing Type	ANSI A156.2, Series 4000, Grade 2, UL Listed
ANSI Number	F111
Limited Warranty	3 Year Warranty
Fire Rated	3 Hours {A}
Burglar Rated	No
Finish	BSP
Finish Description	Black Suede Powder Coat
Finish Family	Black



Technical Specifications

Function	28 Communicating Passage
Function Family	Communicating
ANSI Function	F111 - Exit Lever Only
Lever/Knob Design	AU Augusta
Lever/Knob Design Family	Straight Return Lever
Rose/Escutcheon Design	3-3/8" Rose Diameter
Rose/Escutcheon Dimensions	3-3/8"
Cylinder Type	Non-Keyed
Handing	Non-handed
Door Thickness	1-3/8" to 1-3/4"
Std. Latch Number	MCP234
Std. Latch Type	Spring latch
Std. Latch Backset Dim	2-3/4"
Latch Bore Diameter	7/8"
Lock Face Size	1-1/8" x 2-1/4"
Bolt Projection	1/2"
Bore Hole Diameter	2-1/8"
Std. Strike Number	497
Std. Strike Type	ANSI Strike
Std. Strike Height	4-7/8"
Std. Strike Width	1-1/4"
Screws	Wood/Machine Screws
Product Type	Cylindrical Lock
