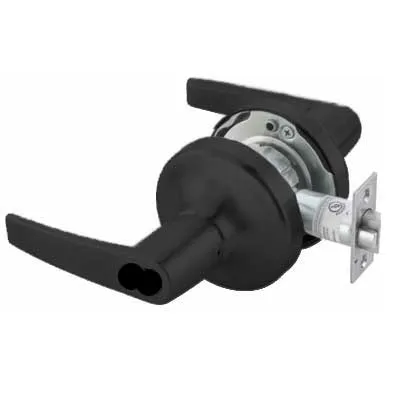

Accentra (Formerly Yale) BMO4607LN-BSP Entrance Cylindrical Lever Lock, Monroe Lever, Grade 2, ASA Strike, 2-3/4 Backset, SFIC, Less Core, BSP Black Suede Powder Coat
The BMO4607LN-BSP is a Grade 2 Cylindrical Lever Lockset, 2 1/8" bore with a 2 3/4" backset. The B stands for an SFIC Small Format Interchangeable Core, Less Cylinder. The MO is the Monroe Lever. This 4600ln series lock is in an 07 Entry Function. The finish is a BSP Black Suede Powder Coat.
Product Specifications
| Vendor | Assa Abloy |
| Manufacturer | Accentra |
| SKU | B-MO4607LN BSP |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 2, UL Listed |
| ANSI Number | F109 |
| Limited Warranty | 3 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish |
626/US26D
|
| Finish Description | Black Suede Powder Coat |
| Finish Family | Black |
Technical Specifications
| Function |
07 Entrance
|
| Function Family | Entrance |
| ANSI Function |
F109 - Entry/Office
|
| Lever/Knob Design |
MO Monroe
|
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
|
| Rose/Escutcheon Dimensions | 3-3/8" |
| Cylinder Type |
|
| Num Pins | 6 or 7 |
| Handing | Non-handed |
| Door Thickness | 1-3/8" to 1-3/4" |
| Std. Latch Number | MCD234 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
