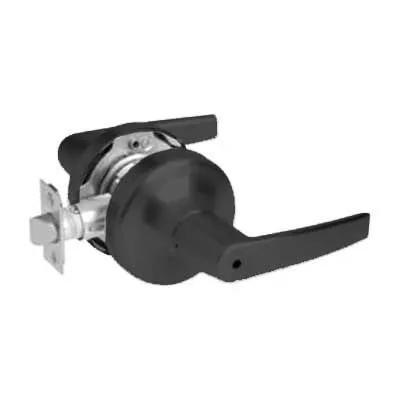

Accentra (Formerly Yale) MO4602LN-BSP Privacy Function Cylindrical Lock - Grade 2, MO Lever, 2 3/4" Backset, BSP Black Suede Powder Coat
The Accentra (Formerly Yale) MO4602LN BSP is a Grade 2 Cylindrical Lock, 2 1/8" bore, 2 3/4" backset, Mo is a Monroe Lever, 02 is a Privacy Function, and the finish is a BSP Black Suede Powder Coat Finish
Technical Specifications
| Function |
02 Privacy
|
| Function Family | Privacy |
| ANSI Function |
|
| Lever/Knob Design |
|
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
|
| Rose/Escutcheon Dimensions | 3-3/8" |
| Cylinder Type |
|
| Handing | Non-handed |
| Door Thickness | 1-3/8" to 1-3/4" |
| Std. Latch Number | MCP234 |
| Std. Latch Type | Spring latch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
