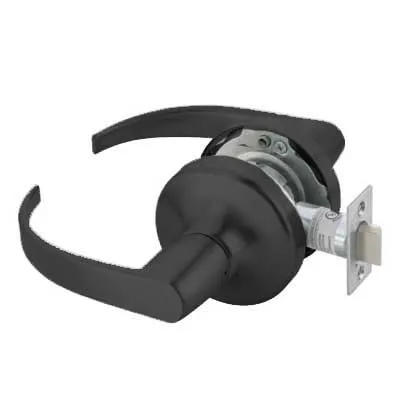

Accentra PB4601LN-BSP cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The PB4601LN-BSP Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.

Technical Specifications

Function	01 Passage Set
Function Family	Passage
ANSI Function	F75 - Passage
Lever/Knob Design	PB Pacific Beach Lever
Lever/Knob Design Family	Curved Return Lever
Rose/Escutcheon Design	3-3/8" Rose Diameter
Rose/Escutcheon Dimensions	3-3/8"
Cylinder Type	Non-Keyed
Handing	Non-handed
Door Thickness	1-3/8" to 1-3/4"
Std. Latch Number	MCP234
Std. Latch Type	Spring latch
Std. Latch Backset Dim	2-3/4"
Latch Bore Diameter	7/8"
Lock Face Size	1-1/8" x 2-1/4"
Bolt Projection	1/2"
Bore Hole Diameter	2-1/8"
Std. Strike Number	497
Std. Strike Type	ANSI Strike
Std. Strike Height	4-7/8"
Std. Strike Width	1-1/4"
Screws	Wood/Machine Screws
Product Type	Cylindrical Lock



Accentra PB4601LN-613E Certifications

ANSI/BHMA:	Grade 2
UL-cUL:	All locks listed for use on fire doors have a rating up to and including 3 hours.
ADA:	Meets A117.1 Accessibility Code
