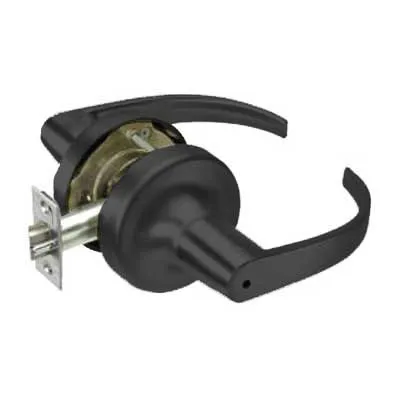

Accentra (Formerly Yale) PB4602LN-BSP Privacy Function Cylindrical Lock - Grade 2, PB Lever, 2 3/4" Backset, BSP Black Suede Powder Coat
Accentra PB4602LN-BSP cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The PB4602LN-BSP Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions ensuring reliability and peace of mind
Technical Specifications
| Function | 02 Privacy Function |
| Function Family | Privacy |
| ANSI Function |
|
| Lever/Knob Design |
PB Pacific Beach
|
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design |
|
| Rose/Escutcheon Dimensions | 3-3/8" |
| Cylinder Type |
|
| Handing | Non-handed |
| Door Thickness | 1-3/8" to 1-3/4" |
| Std. Latch Number | MCP234 |
| Std. Latch Type | Spring latch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
| ANSI/BHMA: | Grade 2 |
| UL-cUL: | All locks listed for use on fire doors have a rating up to and including 3 hours. |
| ADA: | Meets A117.1 Accessibility Code |
