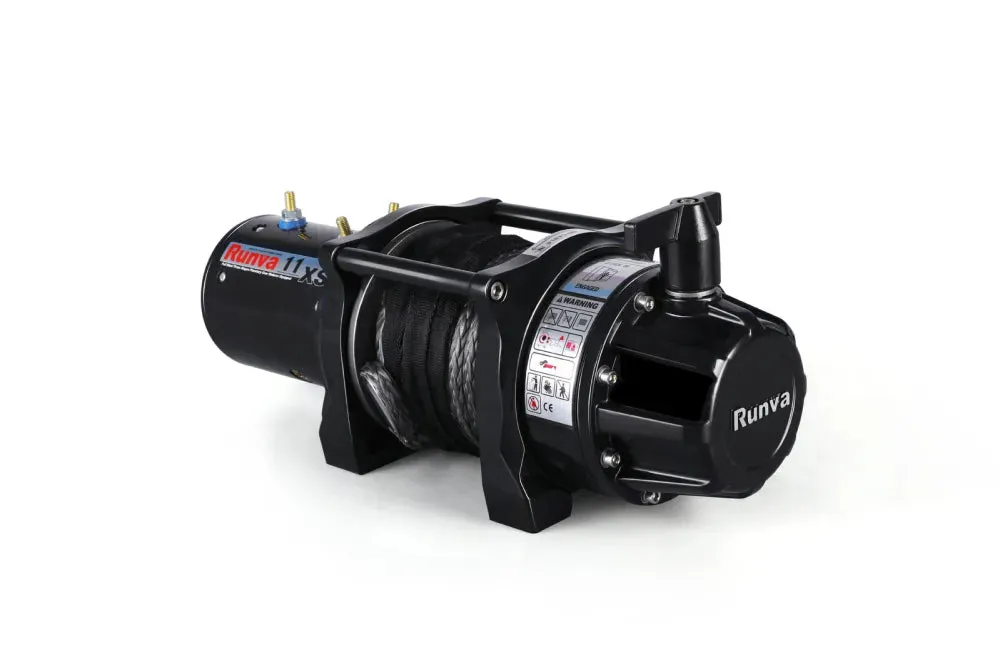

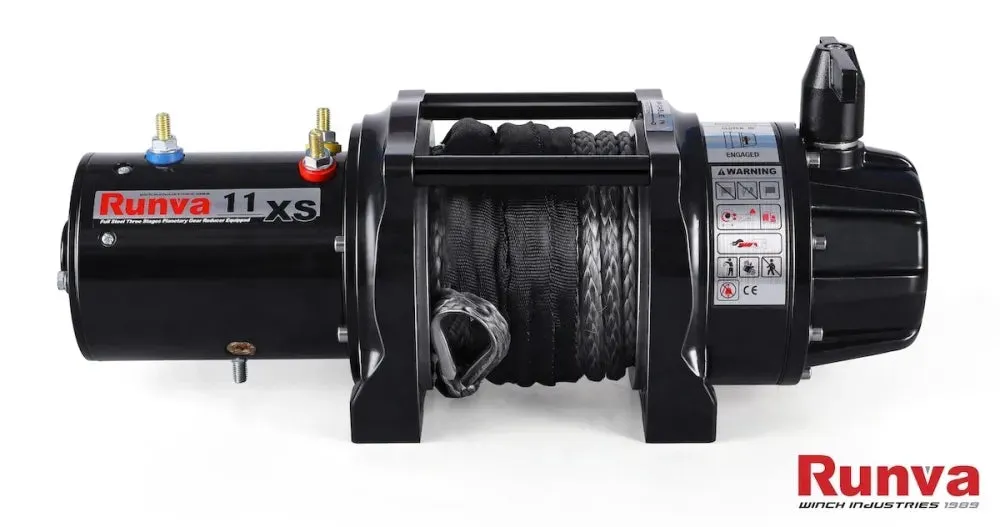

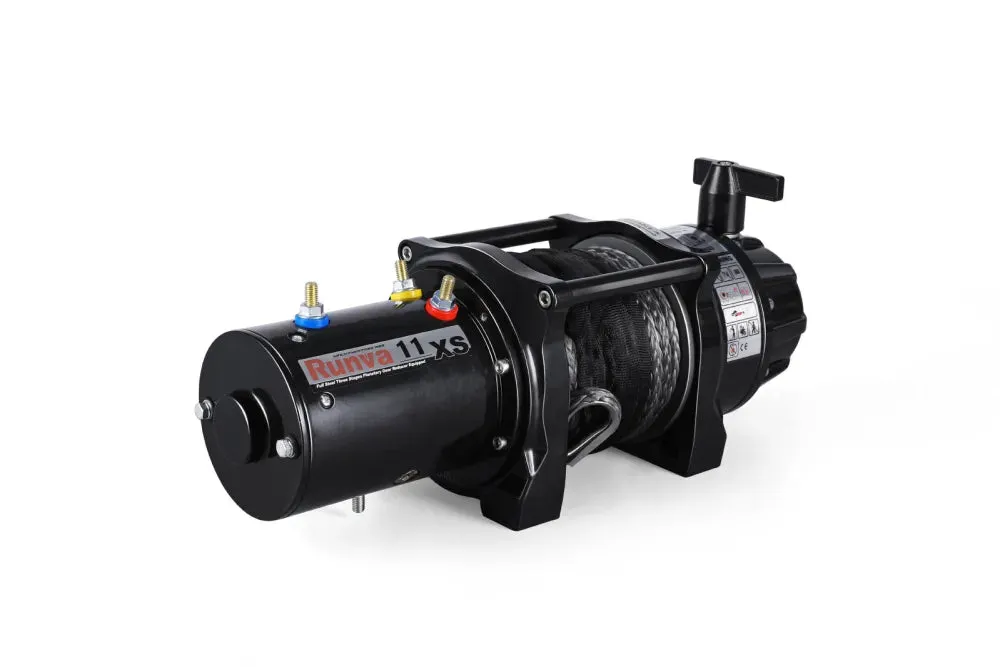

Runva's 11XS Premium 12V 11000lb Compact Winch with Synthetic Rope might be the Perfect Big-Boat Winch
While the Runva 11XS Premium Compact 12V winch is great for any application requiring limited space, it's ideally suited for boat trailers, tippers, car trailers, chippers, certain 4X4 use and MUCH more.
It's tough, powerful, reliable and the entire winch is IP67 rated (meaning it's waterproof up to 1 meter deep!). With 11000lbs/4990kg of rated line pull, it's built for big load requirements.
Like it's big brother the 11XP Premium, the 11XS features the newly designed gearbox with integrated ratchet braking system.
This winch kit includes everything needed to get up and running, including 15 meters of 10mm Dyneema Synthetic Rope (no rusting!), one wired and one wireless remote control, large recovery hook and plenty more.
NOTE: This winch is the compact version of Runva's best selling 11XP Premium. This compact model (11XS) will not fit a standard 4X4 Winch Bar/Bullbar. Please select the for 4X4 Winch Bar/Bullbar fitment instead.
Features
- 11SX Premium Winch with Dyneema Winch Rope
- Control Box With Power Cables Multiple Brackets for Easy Fitting
- Handheld Wireless Remotes
- Large Recovery Hook
- Aluminium Hawse Fairlead
- Power Isolator Switch Bracket Power Cable
- Mounting Bolts
- Limited Lifetime Warranty (5 years electrical, lifetime mechanical)

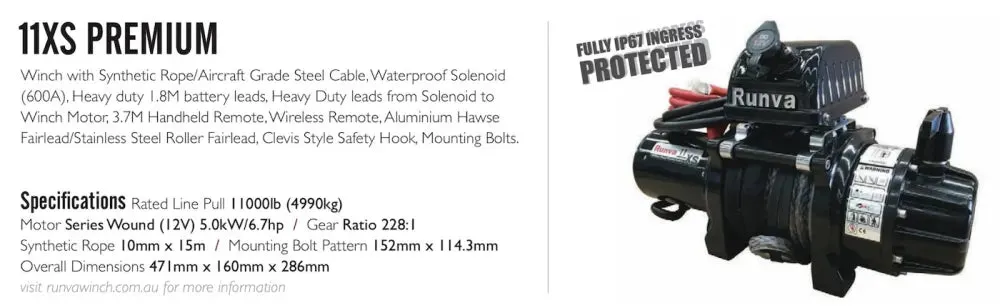

Specifications
- Rated Line Pull 11000lb (4990kg)
- Motor Series Wound (12V) 5.0kW/6HP
- Gear Train Full Steel 3 Stage Planetary
- Gear Ratio 228:1
- Dyneema Synthetic Rope 10mm x 15m
- Mounting Bolt Pattern 151mm x 114.3mm (4x M10 Bolts)
- Overall Dimensions 471mm x 114.3mm x 200mm
- Remote Control 3.7m Heavy Duty Handheld Remote/Wireless Remote
- Battery Leads Included. 2 x 1.8m Heavy Duty Leads
- Finish Black Powder Coat
-
Net Weight 27kg
-
Gross Weight 30kg (includes packaging)
-
Shipping Weight 30kg
- Warranty Limited Lifetime Warranty (5 years electrical, lifetime mechanical)

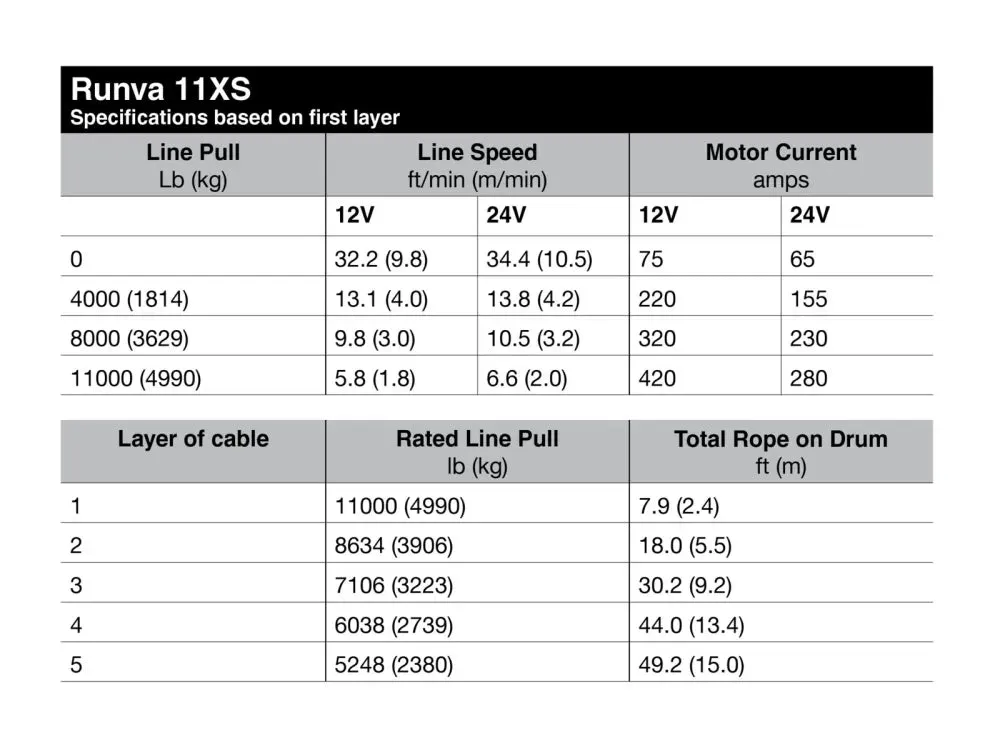

| LINE PULL LB (KG) | LINE SPEED FT/MIN (M/MIN) | MOTOR CURRENT (AMP) | LAYER OF CABLE | RATED LINE PULL LB (KG) | TOTAL ROPE ON DRUM FT (M) | ||
|---|---|---|---|---|---|---|---|
| 12V DC | 24V DC | 12V DC | 24V DC | ||||
| 0 | 32.2 (9.8) | 34.4 (10.5) | 75 | 65 | 1 | 11,000 (4,990) | 7.9 (2.4) |
| 4,000 (1,814) | 13.1 (4.0) | 13.8 (4.2) | 220 | 155 | 2 | 8,634 (3,916) | 18.0 (5.5) |
| 8,000 (3,629) | 9.8 (3.0) | 10.5 (3.2) | 320 | 230 | 3 | 7,106 (3,223) | 30.2 (9.2) |
| 11,000 (4,990) | 5.8 (1.8) | 6.6 (2.0) | 420 | 280 | 4 | 6,038 (2,739) | 44.0 (13.4) |
| 5 | 5,248 (2,380) | 49.2 (15.0) | |||||
(THE MAXIMUM LINE PULL CAPACITY IS BASED ON THE FIRST LAYER OF CABLE/ROPE)
Note: The recommended battery size for use with the 11XS is 750CCA.
