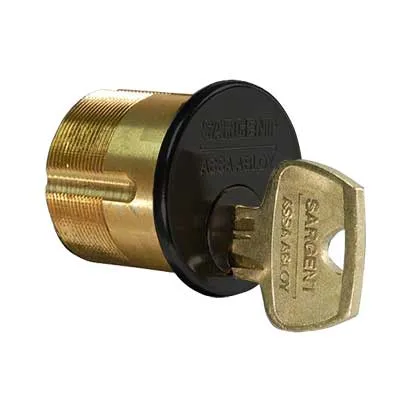

The Sargent 41 LA BSP 0-Bitted‚ Mortise Cylinder is 1-1/8" Long, has a LA Keyway, has Cam 13-0664, comes with 2 keys, is‚ 0-Bitted to allow repinning in the field,‚ and comes in BSP Black Suede Powder Coat Finish.
Sargent 40 Series Mortise Cylinders‚ are high-quality conventional cylinders available in a number of different keyways and finishes.
Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap available‚ in all architectural‚ finishes. They are furnished standard with a number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8‚³ through 3‚³, the minimum length for 7-Pin is 1-1/4‚³. They are provided standard with Sargent offset cam number 13-0664, other cams are available.
Technical Specs
| Cylinder Type: | Mortise Cylinder |
| Finish: | BSP‚ Black Suede Powder Coat |
| Base Material: | Stainless Steel |
| Pins:‚ | 6 |
| Keyway: | LA |
| Keying: | 0-BITTED |
| Number of Keys: | 2 |
| Cylinder Length: | 1-1/8" |
| Cam Type: | Sargent, Yale |
